Products Description
The hydraulic castor oil expeller machine is a heavy-duty, high-performance oil extraction system designed for maximum oil yield with minimal heat generation. Using 60mpa pressure advanced hydraulic press technology, this castor oil expeller machine ensures cold-pressed castor oil, preserving its natural nutrients, viscosity, and therapeutic properties.
The castor oil expeller machine can extract up to 90-95% oil from castor seeds efficiently with no chemical residues,low temperatures pressing to retain oil quality and simple butten for easy operating.
Products Advantage
1). Maximum pressing pressure up to 60Mpa
2). Advanced and reliable hydraulic systems power the equipment
3). The maximum capacity can reach 200KG/H
4). Both cold press and hot press are acceptable
5). Continuous intelligent automatic control system is more safe
6). Low-power motors save energy
7). Filtration system make healthier and cleaner oil.
Products Technial Date
| Model | 6YZ-150 | 6YZ-180 | 6YZ-230 | 6YZ-260 |
| Process capacity | 8-12kg/h | 16-20kg/h | 32-40kg/h | 44-55kg/h |
| Motor power | 0.75kw(220v/50hz/single) | 1.5kw(220v/50hz/single) | 1.5kw(220v/50hz/single) | 1.5kw(220v/50hz/single) |
| Heating power | 600w | 720w | 850w | 950w |
| Heating temperature | 50-70℃ | 50-70℃ | 50-70℃ | 50-70℃ |
| Nominal pressure(KN) | 1100KN | 1700KN | 2700KN | 3400KN |
| Max working pressure | 60MPa | 60MPa | 60MPa | 60MPa |
| Overall size | 700X800X780mm | 800X900X1050mm | 900X1000X1400mm | 1050X1100X1550mm |
| Weight | 240kg | 450kg | 850kg | 1250kg |
|
Model |
6YZ-320 |
6YZ-360 |
6YZ-415 |
6YZ-460 |
|
Process capacity |
60-70kg/h |
80-90kg/h |
90-120kg/h |
150-200kg/h |
|
Motor power |
2.2kw(380V 50Hz3p) |
2.2kw(380V 50Hz3p) |
2.2kw(380V 50Hz3p) |
3kw(380V 50Hz3p) |
|
Heating power |
1100w |
1250w |
1500w |
2000w |
|
Heating temperature |
50-70℃ |
50-70℃ |
50-70℃ |
50-70℃ |
|
Nominal pressure(KN) |
4800KN |
6400KN |
8000KN |
9900KN |
|
Max working pressure |
60MPa |
60MPa |
60MPa |
60MPa |
|
Overall size |
1120X1200 X1650mm |
1200X1200 X1680mm |
1250X1250 X1700mm |
1450X1450 X1950mm |
|
Weight |
1800kg |
2100kg |
2300kg |
3000kg |
Products more photos and details

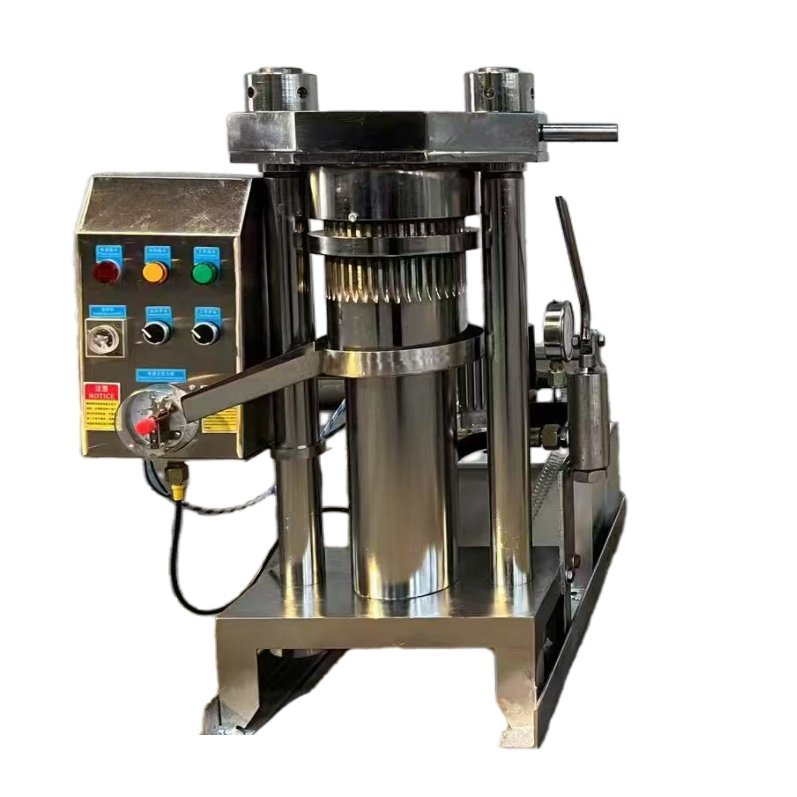

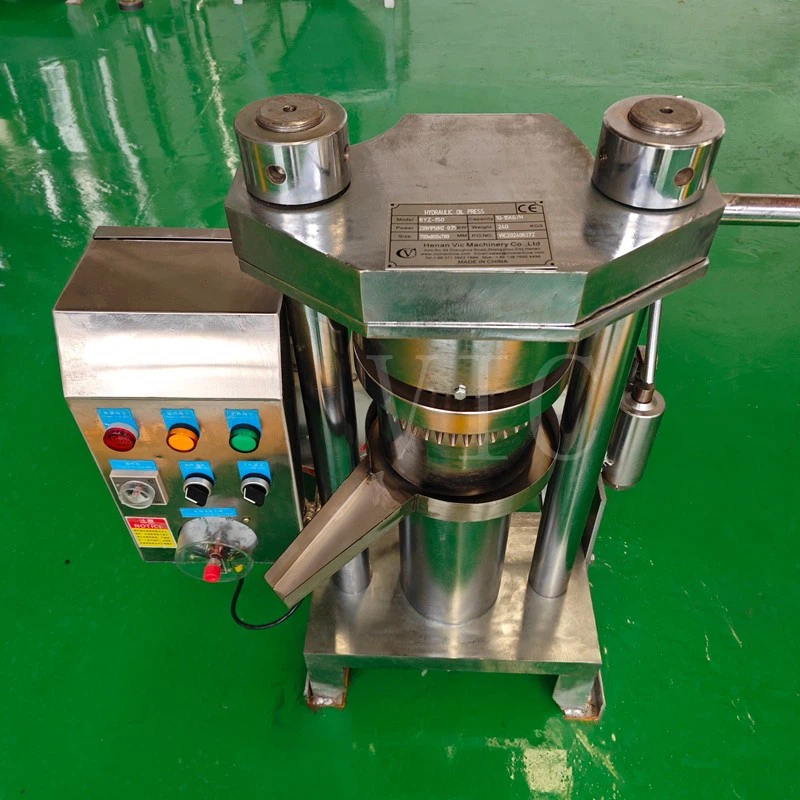

Hydraulic castor oil expeller machine structure
Easy to operate control system
Reliable and stable hydraulic system with super high-pressure pump(up to 60mpa)
Coconut oil pressing
Sesame oil press machine working
Sunflower oil press machine working
Products Package
1)Wrapped in film
2)Packed into wooden cases
Products fAQ
1)Q: What is a hydraulic castor oil expeller machine?
A: A hydraulic castor oil expeller machine is an oil machine that uses hydraulic pressure to extract oil from various materials such as sesame, castor,sunflower seeds, nuts, coconut,olive and fruits and chemical and Chinese medicine raw materials.
2)Q: How does a hydraulic castor oil expeller machine?
A: A hydraulic castor oil expeller machine works by applying pressure on the material with the use of hydraulic cylinders. The oil is then squeezed out of the material and flow out of the oil guide groove .
3)Q: What materials can be used with a hydraulic castor oil expeller machine?
A: A hydraulic castor oil expeller machine can be used with various materials such as sunflower seeds, soybeans, peanuts, sesame seeds, and many more chemical and Chinese medicine raw materials.
4)Q: What are the advantages of using a hydraulic castor oil expeller machine?
A: The advantages of using a hydraulic castor oil expeller machine include high oil yield, low power consumption, low labor intensity, and high efficiency.
5)Q: How can I purchase a hydraulic castor oil expeller machine?
A: You can provide the capacity you need to press, we can help you choose the right machine quickly from our factory.
