Application:

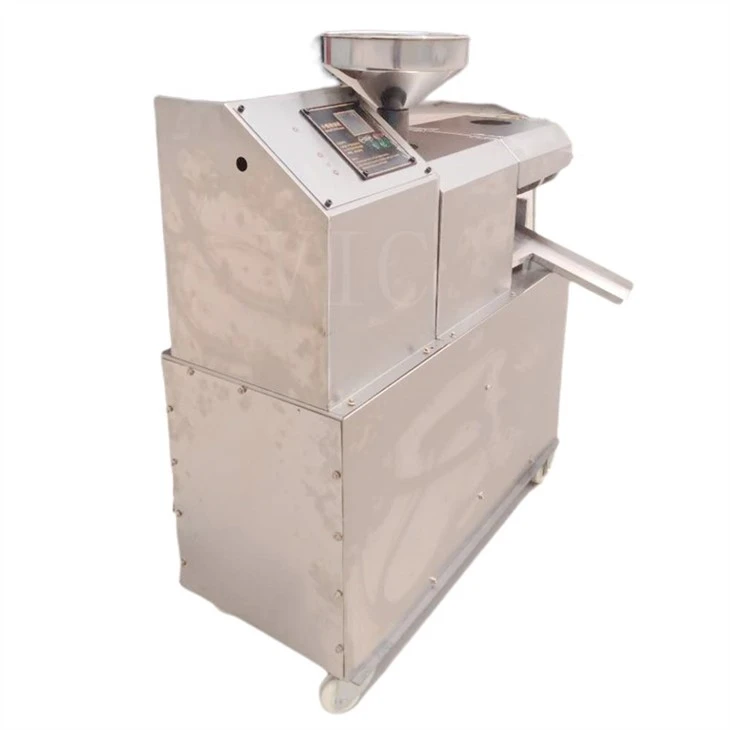

This stainless steel digital temperature control oil millis our new upgrade small family use oil press machine which can be widely used in pressing peanut, sesame, walnut kernel, sunflower seeds, teaseeds, etc.
This oil mill can reach the capacity to 50-70 kg/H.Final capacity depends on the state of the oil seeds.
The oil mill is a strip screw oil press machine for cold and hot pressing.
Main data:
Model | VIC-F4D oil mill |
Voltage | 220v/50hz/-380v/50hz |
Power | 3000w |
Heating power | 3000w |
Capacity | 50-70kg/h |
Oil residue in cake | Less than 3% |
Materials of pressing shaft | Bearing steel Heating treatment |
Materials of pressing chamber | |
Machine size | 1200x400x1100mm |
Weight | 200kgs |
More vantage and details about the oil mill

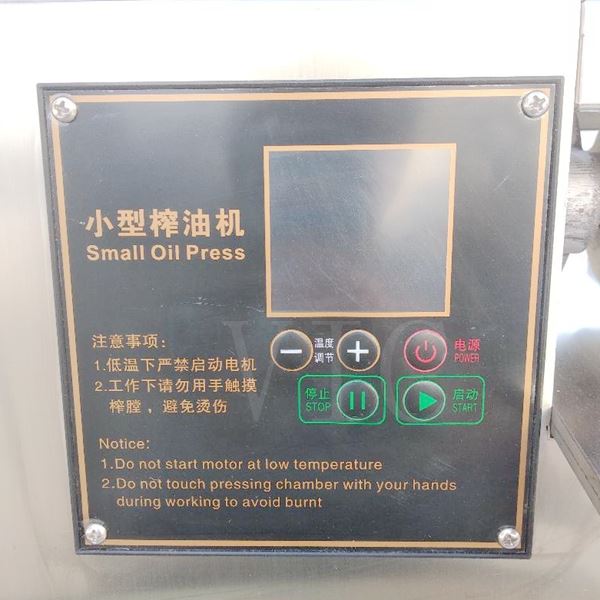

Digital display screen displays temperature parameters in real time，
Set different temperatures according to different raw materials to ensure higher oil yield

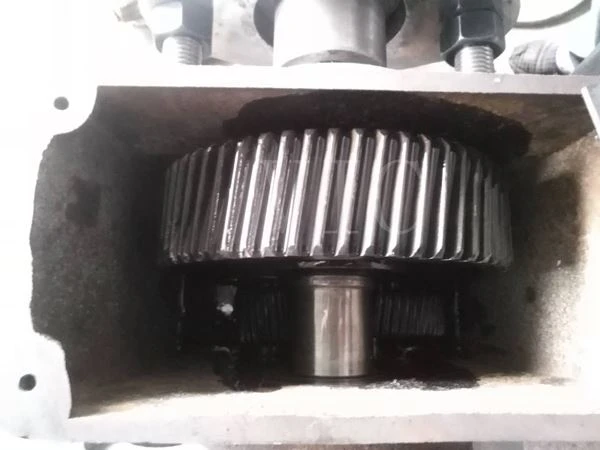

Helical gear reducer with high torque rate, and steady transmission

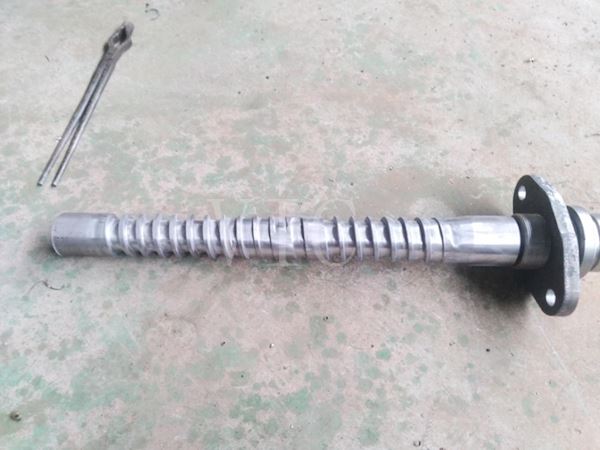

Pressing screw and chamber are bearing steel which is durable and wear-resistant with
70mm diameter pressing shaft
Pressing shaft end is six square hole, installation more convenient and stronger link
