Avocado Oil Processing Machine

Avocado Oil Processing Machine

1.Model:6YZ-415 avocado oil processing machine
2.Capacity:90-120kg/h
3.Power:2.2kw(380v/50hz/3p)
4.Heating collar power and temperature control:1500w(50-70 degree)
5.Max pressure in working and Nominal pressure:60mpa(8000KN) 6.Size and weihght:1250x1250x1700mm;2300kg
Send Inquiry
Chat Now
Description
Technical Parameters



1
Products Description

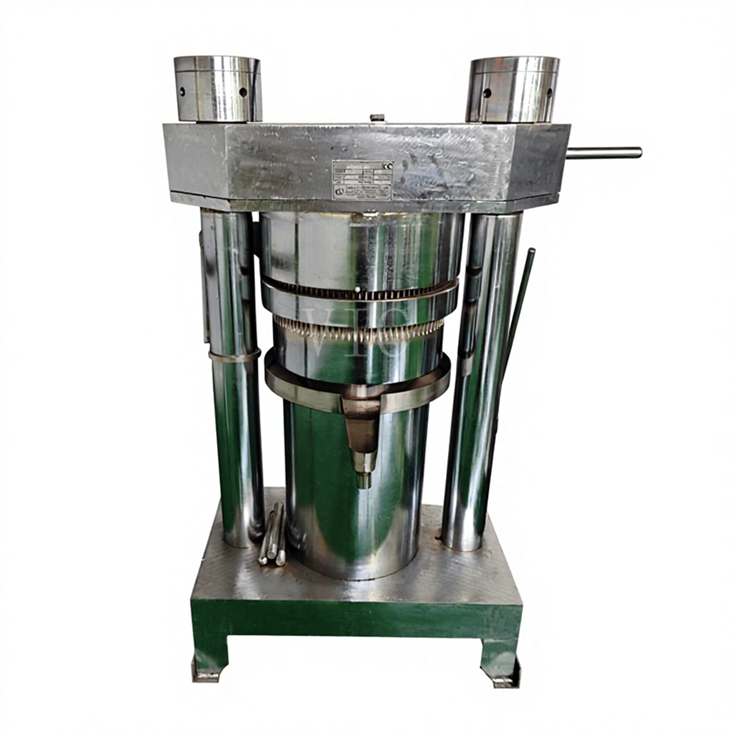

This big avocado oil processing machine is a hydraulic oil press machine with the capacity of 90-120kg/h. This 6YZ-415 hydraulic avocado oil processing machine adopting advanced hydraulic pressing technology, it achieves pure physical extraction without chemicals, retaining the avocado oil's natural nutrients, flavor and high quality, which meets international food safety standards and the demand for premium edible and cosmetic-grade avocado oil.



2
Products Advantage

1). Maximum pressing pressure up to 60Mpa

2). Advanced and reliable hydraulic systems power the equipment

3). The maximum capacity can reach 200KG/H

4). Both cold press and hot press are acceptable

5). Continuous intelligent automatic control system is more safe

6). Low-power motors save energy

7). Filtration system make healthier and cleaner oil .



3
Products Technial Date
Model 6YZ-150 6YZ-180 6YZ-230 6YZ-260
Process capacity 8-12kg/h 16-20kg/h 32-40kg/h 44-55kg/h
Motor power 0.75kw(220v/50hz/single) 1.5kw(220v/50hz/single) 1.5kw(220v/50hz/single) 1.5kw(220v/50hz/single)
Heating power 600w 720w 850w 950w
Heating temperature 50-70℃ 50-70℃ 50-70℃ 50-70℃
Nominal pressure(KN) 1100KN 1700KN 2700KN 3400KN
Max working pressure 60MPa 60MPa 60MPa 60MPa
Overall size 700X800X780mm 800X900X1050mm 900X1000X1400mm 1050X1100X1550mm
Weight 240kg 450kg 850kg 1250kg



Model

6YZ-320

6YZ-360

6YZ-415

6YZ-460

Process capacity

60-70kg/h

80-90kg/h

90-120kg/h

150-200kg/h

Motor power

2.2kw(380V

50Hz3p)

2.2kw(380V

50Hz3p)

2.2kw(380V

50Hz3p)

3kw(380V

50Hz3p)

Heating power

1100w

1250w

1500w

2000w

Heating temperature

50-70℃

50-70℃

50-70℃

50-70℃

Nominal pressure(KN)

4800KN

6400KN

8000KN

9900KN

Max working pressure

60MPa

60MPa

60MPa

60MPa

Overall size

1120X1200

X1650mm

1200X1200

X1680mm

1250X1250

X1700mm

1450X1450

X1950mm

Weight

1800kg

2100kg

2300kg

3000kg

hydraulic cold oil press



4
Products more photos and details

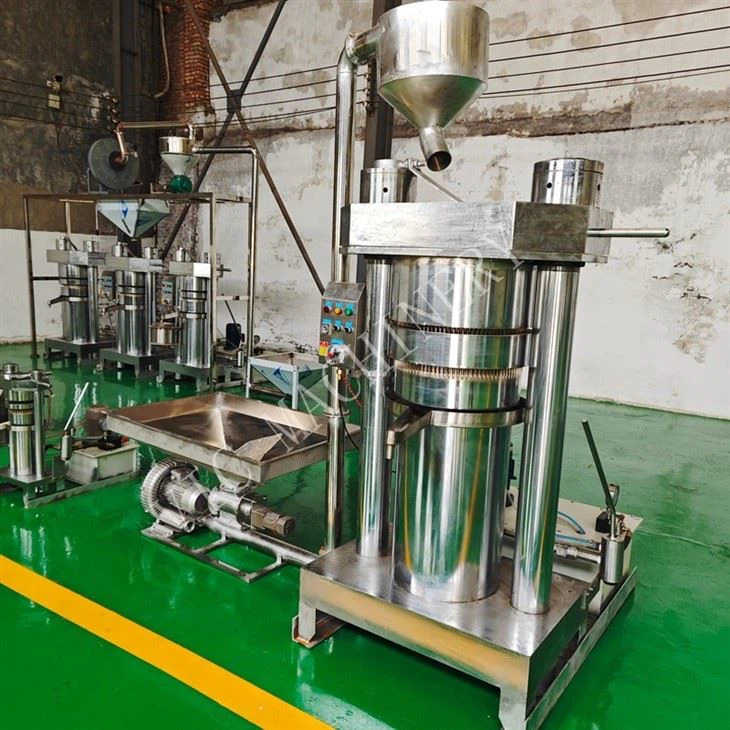

Hydraulic avocado oil processing machine structure



product-1-1

Easy to operate control system

CONTROL BOX

Reliable and stable hydraulic system with super high-pressure pump(up to 60mpa)

Hydraulic system



Coconut oil pressing

coconut oil press machine

Sesame oil press machine working

Sesame oil press mahine



Sunflower oil press machine working

sunflower oil press machine





5
Products Package

1)Wrapped in film

2)Packed into wooden cases

cold oil press machine



.jpg





6
Products fAQ



1)Q: What is a hydraulic oil press machine and what is it used for?
A: A hydraulicoil press machine is a powerful machine used for extracting oil from various seeds and nuts by applying pressure using a hydraulic system.

The hydraulic oil expeller is used for oil-rich crop, such as sesame, walnut, soybean, peanut, melon seed, almond, pine nut, etc.


2)Q: What makes hydraulic avocado oil processing machine better than other oil press machines?
A: Hydraulic avocado oil processing machines are superior to other oil press machines because their hydraulic systems provide a greater amount of pressure than other systems. This makes it possible to extract oil from extremely hard nuts and seeds such as walnuts or sunflower seeds. Additionally, hydraulic oil press machines can press oil quickly at short time.



3)Q: What types of seeds can I use with a avocado oil processing machine​​​​​​​?
A: A hydraulic oil press machine is versatile and can process a wide variety of seeds. It can extract oil from nuts such as almonds, peanuts, walnuts, hazelnuts, and macadamia nuts. It can also extract oil from seeds such as sunflower seeds, pumpkin seeds, flaxseeds, and sesame seeds.


4)Q: What are the benefits of using a hydraulic oil press machine?
A: The major benefit of using a hydraulic oil press machine is that the oil produced is pure and high-quality, without the added chemicals or preservatives found in commercial oils. The oil retains its nutritional value and natural flavor, making it ideal for cooking and baking. Other benefits include increased efficiency in oil extraction, easy operation and maintenance, and the convenience of producing your own oil at home.


5)Q: Do I need any special training to operate a hydraulic oil press machine?
A: No, you do not need any special training to operate a hydraulic oil press machine. The straightforward design and efficient hydraulic system make it easy to use and maintain. However, it is important to follow the instructions provided by the manufacturer to ensure proper operation and safety.



6)Q: How do I choose the right hydraulic olive oil making machine for my needs?
A: When choosing a hydraulic oil press machine, you should consider the volume of seeds you intend to process, the type of seeds you want to use. ( Of course, we have a wealth of oil extraction experience, you only need to provide the raw materials and the capaity to be processed, we will provide you with a suitable solution freely )



7)Q: How long can my hydraulic olive oil making machine be shipped?

A:Generally, after receiving the deposit, it can be shipped within about 7 days from our factory.
