Products Description
This hydraulic sesame oil extraction machine is an oil press machine for get oil from oil materials.High yield and advanced technology sesame oil is a popular cooking oil in many countries, especially in Asia, due to its unique flavor and nutritional value.
One of the best features of a sesame oil extraction machine is its high yield. With a production capacity of up to 150kg/h, you can extract a large amount of sesame oil in a short period. This is particularly useful for commercial purposes, where a large quantity of sesame oil is needed.
Another outstanding feature of a sesame oil extraction machine is its advanced hydraulic system. The hydraulic pressure can reach up to 60mpa, ensuring that the oil is extracted cleanly and efficiently.
Products Advantage
1). Maximum working pressing pressure up to 60Mpa
2). Advanced and reliable hydraulic systems drive the equipment
3). The maximum model capacity can reach 150KG/H
4). Both cold press and hot press are acceptable
5). Continuous intelligent automatic control system is more safe
6). Low-power motors save energy
7). Filtration system make healthier and cleaner oil .
Products Technial Data
| Model | 6Y-180 | 6Y-230 | 6Y-260 |
| Process capacity | 15-30kg/h | 40-60kg/h | 60-80kg/h |
| Power | 1.1kw(380v/50hz/3p); 1.5kw(220v/50hz/single) |
1.5kw(380v/50hz/3p) 3.0kw(220v/50hz/single) |
1.5kw(380v/50hz/3p |
| Heating collar power | 1kw | 1kw | 1kw |
| Heating collar temperature control | 70-100 degree | 70-100 degree | 70-100 degree |
| Nominal pressure | 1600KN | 2200KN | 3200KN |
| Max pressure in working | 60MPa | 60MPa | 60MPa |
| Overall size | 800X600X1100mm | 850X750X1450mm | 900X850X1500mm |
| Weight | 530kg | 880kg | 1000kg |
| Model | 6Y-280 | 6Y-320 |
| Process capacity | 90-100kg/h | 100-150kg/h |
| Power | 2.2kw(380v/50hz/3p) | 3kw(380V/50Hz) |
| Heating collar power | 2kw | 2kw |
| Heating collar temperature control | 70-100 degree | 70-100 degree |
| Nominal pressure | 3700KN | 4800KN |
| Max pressure in working | 60MPa | 60MPa |
| Overall size | 900X900X1550mm | 900X1000X1650mm |
| Weight | 1200kg | 1600kg |
Products more photos and details

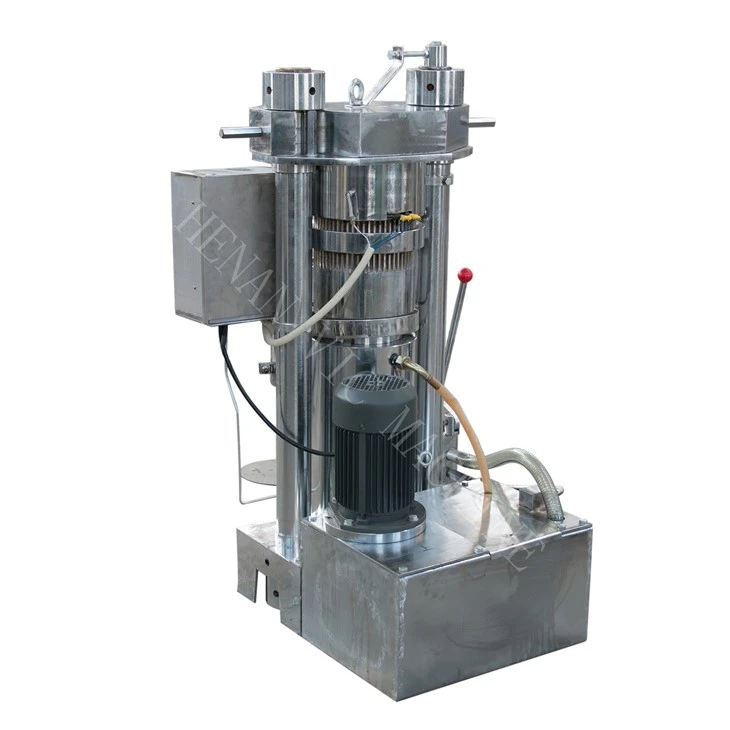

Hydraulic oil press machine structure

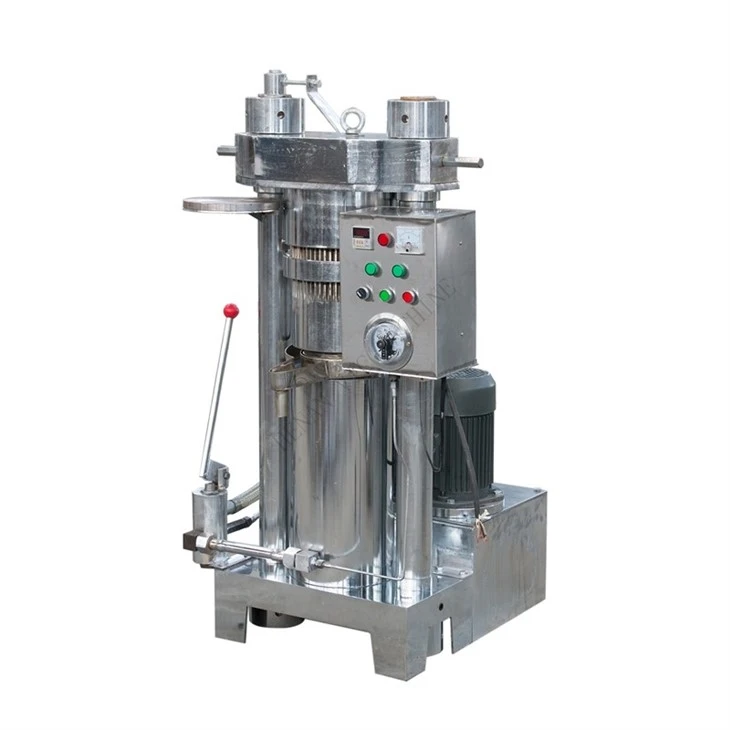

Easy operating control system with pressure gage
Reliable and stable hydraulic system with super high-pressure pump(up to 60mpa)
Hydraulic oil press machine with oil filter
Coconut oil pressing
Sesame oil press machine working
Sunflower oil press machine working
Products Package
1)Wrapped in film
2)Packed into wooden cases or containers
Products FAQ
1)Q: What is a hydraulic oil press machine and what is it used for?
A: A hydraulic oil press machine is a powerful machine used for extracting oil from various seeds and nuts by applying pressure using a hydraulic system.
The hydraulic oil expeller is used for oil-rich crop, such as sesame, walnut, soybean, peanut, melon seed, almond, pine nut, etc.
2)Q: What makes hydraulic sesame oil extraction machine better than other oil press machines?
A: Hydraulic oil press machines are superior to other oil press machines because their hydraulic systems provide a greater amount of pressure than other systems. This makes it possible to extract oil from extremely hard nuts and seeds such as walnuts or sunflower seeds. Additionally, hydraulic oil press machines can press oil quickly at shot time.
3)Q: What types of seeds can I use with a hydraulic sesame oil extraction machine?
A: A hydraulic oil press machine is versatile and can process a wide variety of seeds. It can extract oil from nuts such as almonds, peanuts, walnuts, hazelnuts, and macadamia nuts. It can also extract oil from seeds such as sunflower seeds, pumpkin seeds, flaxseeds, and sesame seeds.
4)Q: What are the benefits of using a hydraulic sesame oil extraction machine?
A: The major benefit of using a hydraulic oil press machine is that the oil produced is pure and high-quality, without the added chemicals or preservatives found in commercial oils. The oil retains its nutritional value and natural flavor, making it ideal for cooking and baking. Other benefits include increased efficiency in oil extraction, easy operation and maintenance, and the convenience of producing your own oil at home.
5)Q: Do I need any special training to operate a hydraulic sesame oil extraction machine?
A: No, you do not need any special training to operate a hydraulic oil press machine. The straightforward design and efficient hydraulic system make it easy to use and maintain. However, it is important to follow the instructions provided by the manufacturer to ensure proper operation and safety.
6)Q: How do I choose the right hydraulic sesame oil extraction machine for my needs?
A: When choosing a hydraulic oil press machine, you should consider the volume of seeds you intend to process, the type of seeds you want to use. ( Of course, we have a wealth of oil extraction experience, you only need to provide the raw materials and the capaity to be processed, we will provide you with a suitable solution freely )
7)Q: How long can my hydraulic sesame oil extraction machine be shipped?
A:Generally, after receiving the deposit, it can be shipped within about 7 days from our factory.
