Automatic Oil Expeller with Centrifugal Filter CY-172B

Automatic Oil Expeller with Centrifugal Filter CY-172B

Choose centrifugal filter, the filtering can control with button, and the phospholipids, waxiness can be threshed once.This automatic oil expeller is with compact structure, oil tray and oil cover are all stainless steel for easy cleaning.can be applied to use in small-medium factory, also can be widely used in supermarket for fresh pressing and fresh oil selling
Send Inquiry
Chat Now
Description
Technical Parameters

Application:

CY-172B automatic oil expeller can press different materials such as sesame, peanut, rapeseeds, sunflower seeds, soybean, tea seeds, etc with high oil output rate and low energy consumption.

Feature:

1. CY-172B automatic oil expeller choose a centrifugal filter, the filtering can control with button, and the phospholipids, waxiness can be threshed once.

2. The product oil is very clear, with no foam when cooking with pure flavor, its more health for cooking, and also with the high automatic.

3. This machine is with compact structure, oil tray and oil cover are all stainless steel for easy cleaning.

Main data:

Model: CY-172B temperature control automatic oil expeller

Processing capacity: 60-100kg/h

Power: 3kw(380v/50hz/3p, 220v/single phase)

Pressing screw speed: 45rpm

Pressing screw diameter: 70mm

Pressing chamber inner dia:72mm

Residue oil in cake: less than 6%

Size: 1080x920x1550mm

Weight: 350kgs

Capacity and oil output rate:

Model

172

(kg/h)

282

(T/D)

298

298-1/-3

Output rate(%)

The sickness of cake(mm)

Residue oil rate(%)

Sesame

70-85

2.4-3.1

3.8-4.6

3.8-4.6

44-51

0.8-2.0

《5.2-7.2

Peanut

45-55

2-3

3.5-4.2

3.5-4.2

40-50

0.8-2.6

《4.5-6.5

Rapeseed

75-100

3-3.6

4-5

4-5

30-42

1.0-2.5

《6-8

Sunflower

seeds

35-45

2.1-2.9

3.6-4.2

3.6-4.2

30-38

1.2-1.5

《6.5-8

Note:

1. Because of raw materials differences, quality, different oil content and operation differences, etc, the practical result will have some difference and its normal condition.

2. T/24H is the capacity with hot press and one time press, if press second time or third time the capacity will be 1/2 or 1/3.

More photos and details

Intelligent integrated control system with temperature controller

CY-172 controller

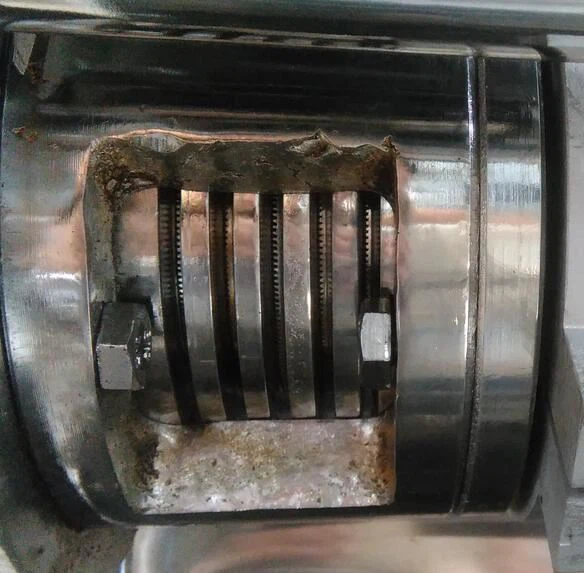

Heat-treated stainless steel round row is more wear-resistant

CY-172 oil mill

Some parts

CY PARTS

Package

CY oil press machine

Circuit theory drawing:

sesame oil extraction machine circuit
