Application:
1.Advantage: nice shape, highly structured, easy installation, a high degree of automation, fast warm-up, and high oil output rate with pure scent.
2.New type: this kind of mustard oil expeller is our latest environment protection oil press.
3.Feature:
1). Auto frying is installed on the top of the feeding hopper and can auto frying raw materials well before pressing the oil.
2). Control box to control temperature and make the machine work.
3). Centrifugal filter can be controlled with a button
4.Main function: cooking pan heated by electric automatically to cook the materials to stated temperature for better oil output
5.Stainless steel: oil tray and oil cover and control box are all stainless steel for easy cleaning.
6.Final edible oil: the product oil is very clear, no foam when cooking with pure flavor, it's more health for cooking.
7.Suitable place: this kind of mustard oil expeller is suitable for small-medium factories and supermarkets.
Main data:

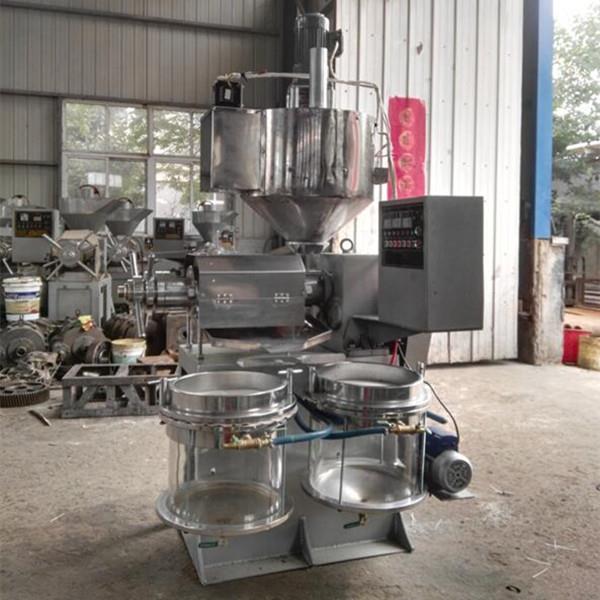

Model: CY-172C auto-frying combined mustard oil expeller
Capacity: 40-65kg/h for raw materials
Power: 3kw(380v/50hz/3P)
Size(mm): 1080×920×1830
Residue oil in cake: less than 6%
Weight: 460kgs
Spare parts for CY-172C mustard oil expeller, include:
1. Pressing screw( 1set)
2. Round rings(1 set)
3. Rods( 1set)
4. Pressing tube (1 set)
5. Filter cloth (1 set)
Schematic:
No. | Name | No. | Name | No. | Name | No. | Name | No. | Name |
1 | Small motor | 8 | Pressing screw | 15 | Main shaft | 22 | Slay-out head | 29 | Locknut |
2 | Vacuum pump | 9 | Rods | 16 | Round ring 1# | 23 | Screw | 32 | Pressing screw nut |
3 | Oil filter | 10 | Heating plate | 17 | Round ring 2# | 24 | Bearing | 31 | Meter box |
4 | Oil conveyor | 11 | Pull rod | 18 | Round ring frame | 25 | Handle | 32 | Bearing rod |
5 | Oil tray | 12 | Feeder head | 19 | Heating plate 2 | 26 | Bearing lock nut | 33 | Feed opening |
6 | Base | 13 | Pressing rube | 20 | Cake output ring | 27 | Bearing adjusting nut | ||
7 | Gearbox | 14 | 1# pressing ring | 21 | Cake output exit | 28 | Adjusting nut |
Safety operation rule:
To protect your body and make sure the machine work normal pls follow the following rules:
1. Before using the machine, pls read the operation manual carefully; the user should know some machine, electricity, and safety knowledge to make sure people and machines both work normal.
2. When the machine working pls be sure no touch to the rotating parts and don’ t wear too long clothes or wear jewelry.
3. When the machine working pls don’t open the oil cover to check to avoid being burned; pls don’t tear down the safety protection equipment to avoid accidents.
4. Plus, don’t use hand or other things to provoke feeling hopper and to get a cake from the cake output.
5. Pls, be sure no hard steel inside the pressing chamber.
6. Bearing if blocked pls deal with it quickly, no start if not recovery.
7. The output cake should cool for some time to avoid fire.
