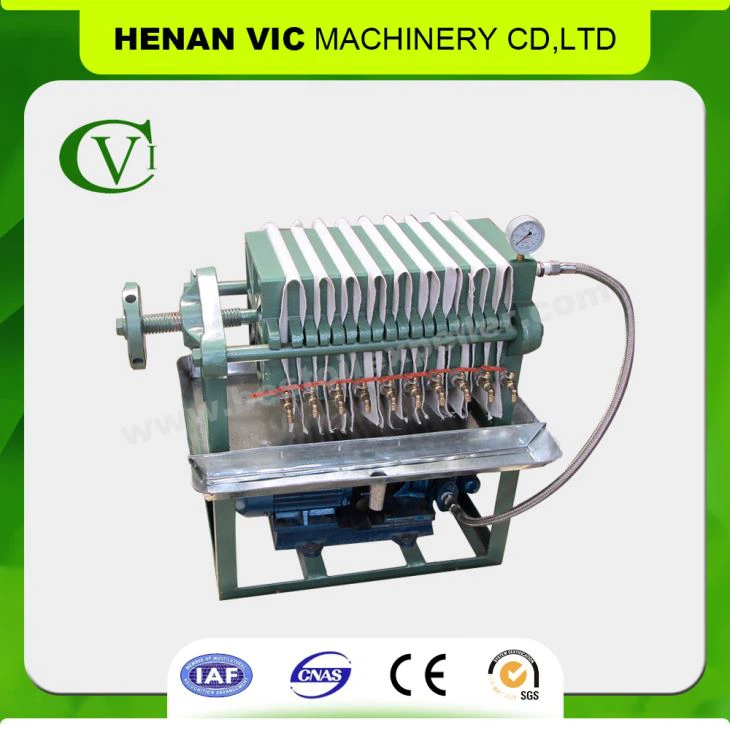

Crude oil plate filter application:
This series crude oi platel filter is mainly used for filtering the crude oil pressed out by screw type oil press. An oil filter can be matched with oil press to clear the oil, also can be used to filter the waste oil, wastewater, and bio-diesel, etc.
Plate oil filter main data:
Model | filter plate | filter plate size | Working pressure | Capacity | Power | Dimensions (mm) | weight |
6LB-200 | 9 pcs | 200x200mm | 0.3－0.4mpa | 30-50kg/h | 0.55kw | 550x440x640
| 150kg |
6LB-250 | 13pcs | 250x250mm | 0.3－0.4mpa | 100kg/h | 0.75kw | 780x540x680
| 200kg |
6LB-350 | 25pcs | 350x350mm | 0.3－0.4mpa | 200kg/h | 1.1kw | 1300x750x700 | 470kg |
Main structure of plate filter:

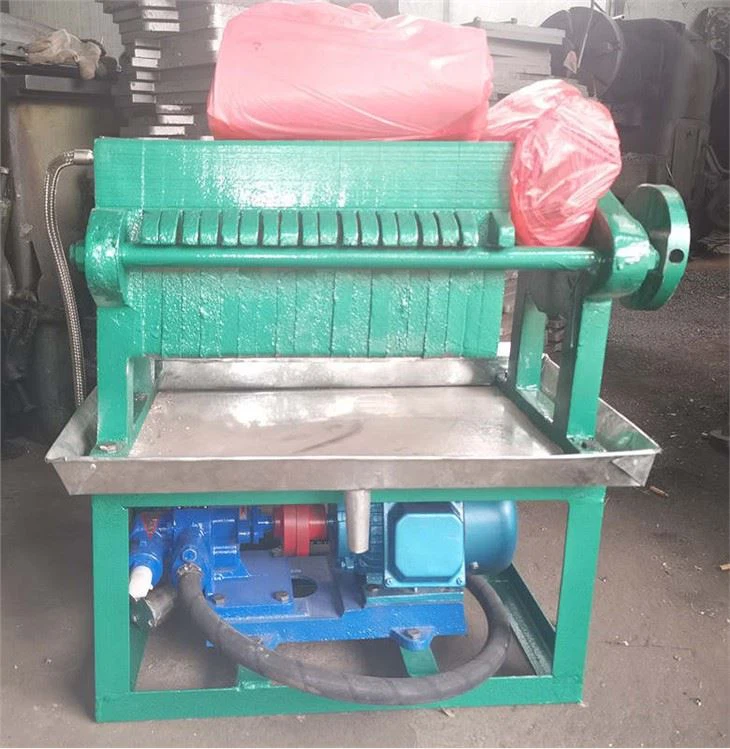

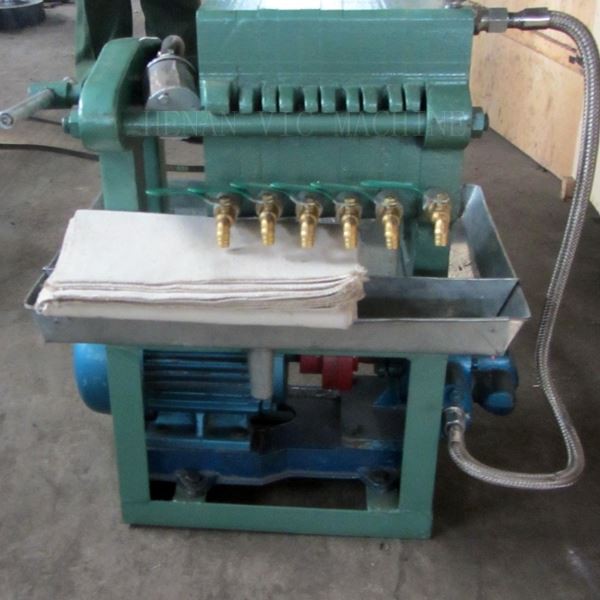

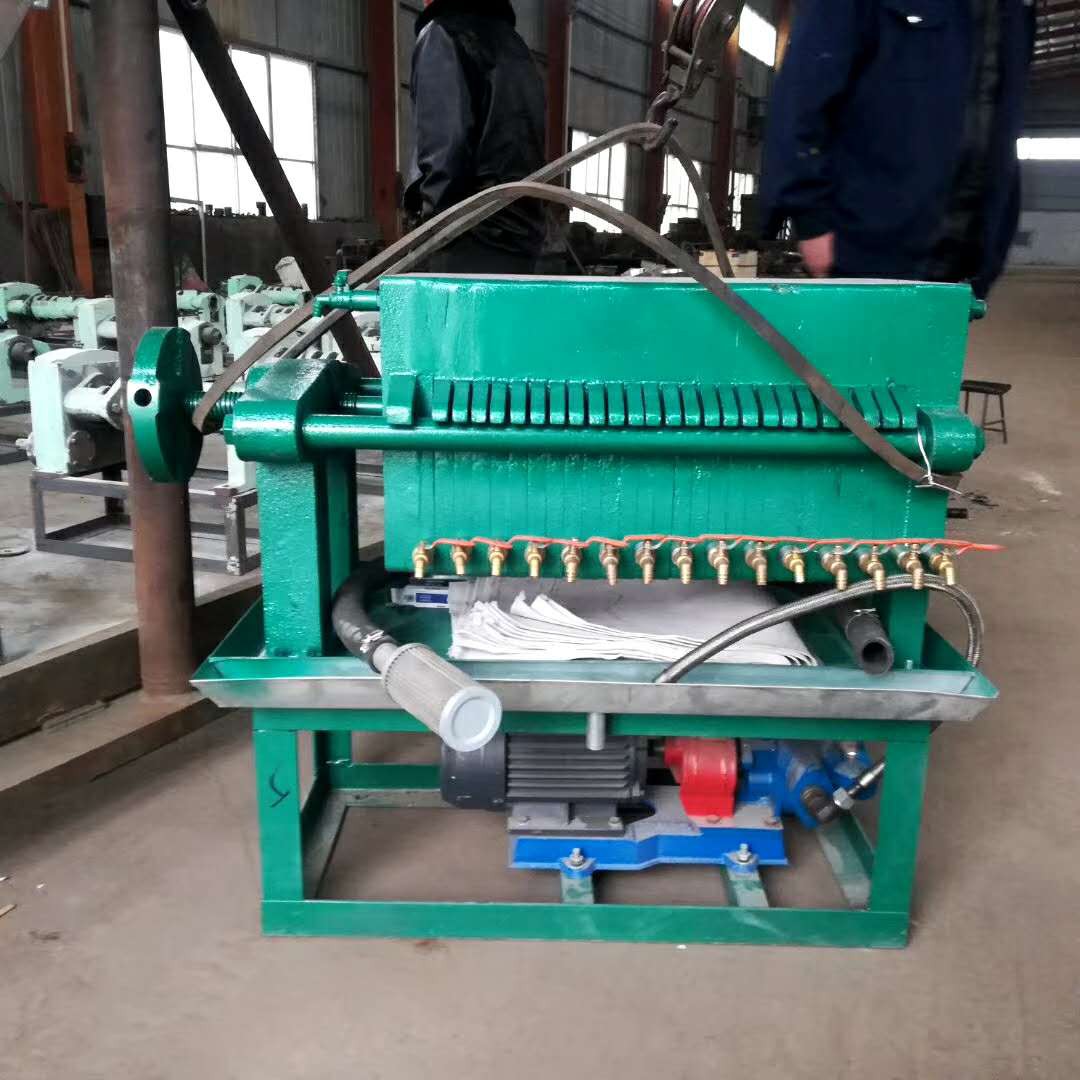

More pictures

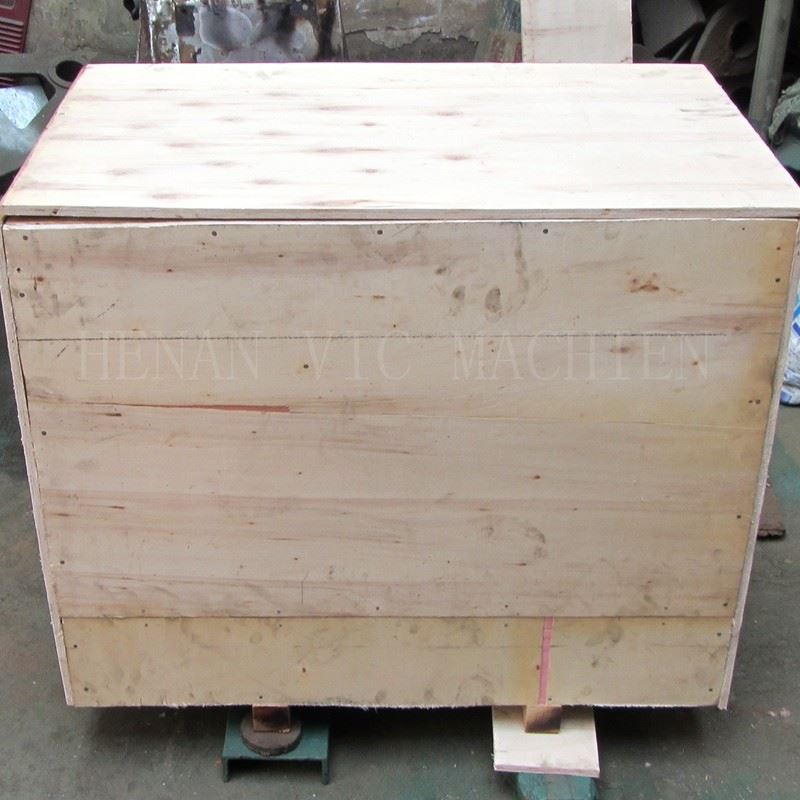

Package
Other oil filters
Stainless stell oil filter
Hydraulic oil filter
Mechanical oil filter

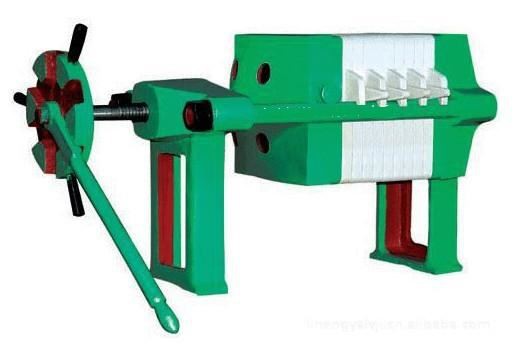

Manual oil filter
If you're looking for the cheap crude oil plate filter 6lb model, welcome to buy the quality and cheap cheap crude oil plate filter 6lb model with us. We are one of the professional press machine manufacturers and suppliers in China. We will also offer you the wholesale service at big discount.
