Production Line Technical Indexes about the palm oil refinery machine
1 Required crude palm oil quality index
1.1 Moisture and volatile matters (%): ≤ 0.20
1.2 Insoluble impurities(%): ≤ 0.05
1.3 Acid value (Calculating as per KOH) (mg/g): ≤10.0
1.4 Smell,flavor: With inherent smell and flavor of crude oil, no off-flavor.
2.0 Finished oil quality index
2.1 Color (Lovibond color slot 133.4mm): Yellow value ≤30, red value ≤ 3.0
2.2 Smell,flavor: Good smell and flavor
2.3 Moisture and volatile matters (%): ≤ 0.05
2.4 Insoluble impurities(%): ≤ 0.05
2.5 Acid value (Calculating as per KOH) (mg/g): ≤ 0.20
2.6 Peroxide value(mmol/kg): ≤ 5.0
Process Description about the palm oil refinery machine
1 Oil Refining Tank
Double speed motor, adopt S-shaped coils to heat in oil refining tank,inner with wing type stirrer, oil increases temperature quickly, water washing is uniform,adopt automatic welding technology, the appearance is nice and beautiful.
2 Drying & decolorization tank
Double layer S-shaped coils in tank and increase temperature and cool, upper is shell cover and lower is cone, its appearance is nice and beautiful, with good leakproofness,inner with wing type stirrer,save energy.
3 High temperature deodorization tank
Deodorization tank adopts polishing stainless steel,inner with high pressure steam jet system, ensure oil layer stir well,with high deodorization efficiency,inner with double layer S-shaped coils, increase and reduce temperature quickly,save energy.
Main data about the palm oil refinery plant
|
No. |
Equipment Name |
Qty. |
Remarks |
|
1 |
Oil refining tank |
1 |
Polishing SS304,with double speed motor and reducer. |
|
2 |
Oil refining tank |
1 |
Polishing SS304,with double speed motor and reducer. |
|
3 |
Hot water & lye case |
1 |
Polishing SS304 |
|
4 |
Separated oil case |
1 |
Polishing SS304 Store separated oil from waste water. |
|
5 |
Soap-stock pump |
1 |
Convey soap-stock |
|
6 |
Dehydration & bleaching tank |
1 |
Polishing SS304,with double speed motor and reducer. |
|
7 |
Bleaching earth case |
1 |
Polishing SS304. Store bleaching earth. |
|
8 |
Filtration pump |
1 |
Convey oil to filter. |
|
9 |
Leaf vibration filter |
1 |
Stainless steel shell and filter plates. Filter bleaching earth. |
|
10 |
Bleaching oil tank |
1 |
Polishing SS304 Store bleaching oil. |
|
11 |
Air compressor |
1 |
Generate compressed air. |
|
12 |
Compressed air tank |
|
Carbon steel |
|
13 |
Deodorization tank |
1 |
Polishing SS304 with upper and lower shell cover.Inner with S-shaped heating and cooling coils. |
|
14 |
Gear oil pump |
1 |
Convey oil. |
|
15 |
Polishing filter |
1 |
Polishing SS304, inside with dismountable filter screen. |
|
16 |
Vacuum catcher |
1 |
Polishing SS304 |
|
17 |
Energy-saving vacuum pump |
1 |
Generate vacuum to form negative pressure status |
|
18 |
Circulating cooling water tank |
1 |
Offered by customer |
|
19 |
Circulating water pump |
1 |
Water circulating |
|
20 |
Electric steam superheater |
1 |
Generate dry steam. |
|
21 |
Electric steam generator |
1 |
Generate steam. |
|
22 |
Heating furnace with temperature control |
1 |
Heating for all the machines. |
|
23 |
Installation materials |
1set |
Valves,pipe,flange,frame, platform, guard bar, etc |
|
24 |

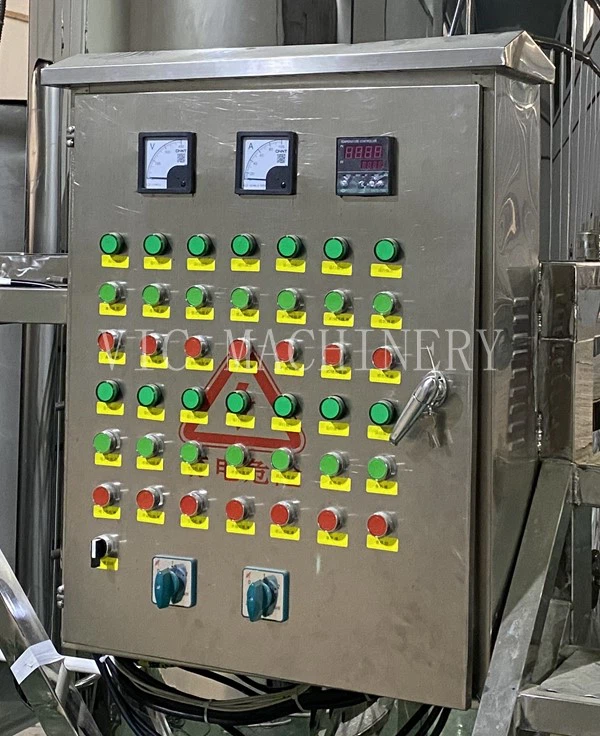

Power distribution and Control |
1set |
CHNT electrical component. Cable from power distribution cabinet to machines. |

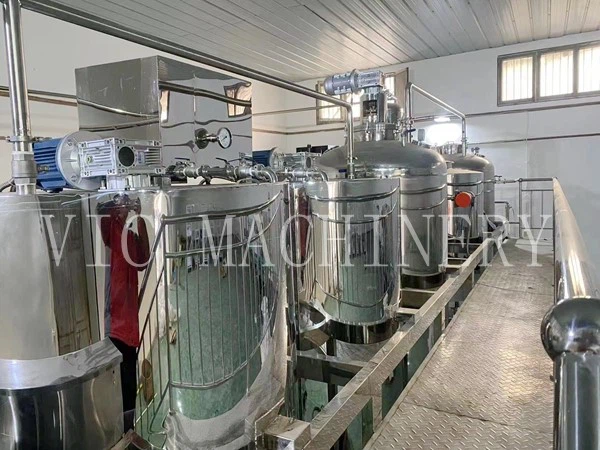

More pictures and details about the palm oil refinery plant
