Application:

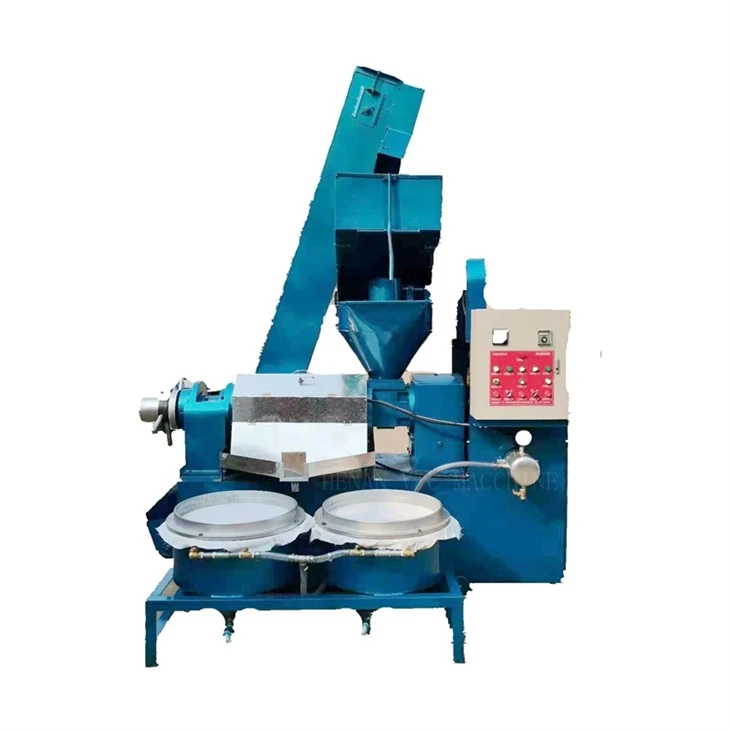

500 KG/H Automatic feeding screw oil press machine with filter is produced according to customer's requirement about feeding,pressing and and filtering combined together.
This equipment can made with different model screw oil press, it can feed different oilseeds such as rapeseeds, peanut, soybean, sunflowerseeds, teaseeds etc.
Automatic conveying, save labor and time with easy operation, the oil seeds after filtering for high quality oil, its especially suitable for continuous working of small and medium oil factory.
Flow chart:
Feeding materials--- oil press---filtering---final product
Avantage
1.The automatic feeding conveyor does not need to be loaded at a high place, saving labor
2.The material can be automatically loaded twice to increase the oil output
3.The one-button switching handle of the hopper can arrange the cakes at a high position, which is convenient for loading and transportation.
4.The vacuum filter directly filters the pressed oil, and the oil is cleaner
Technical data:

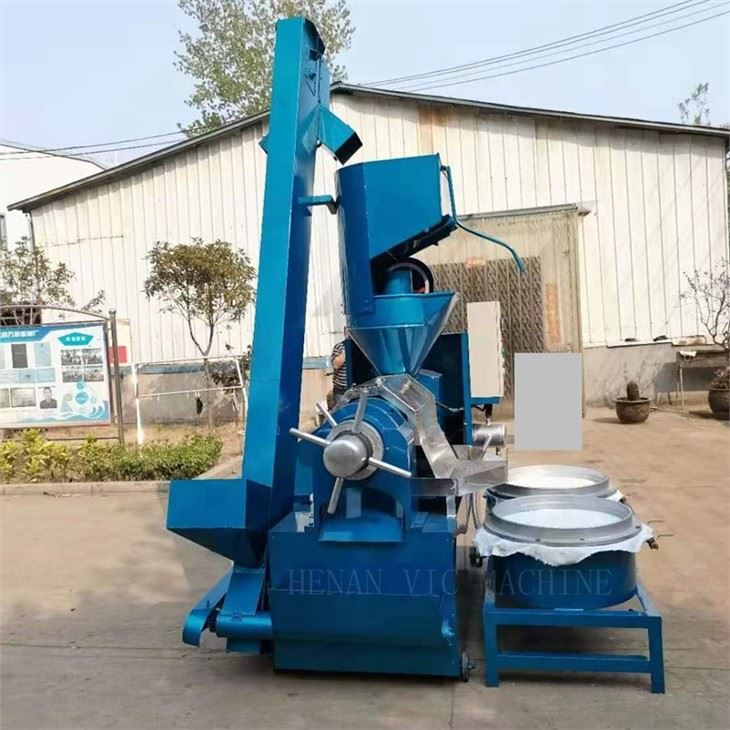

Model: 6YL-160BF
Capacity: 400-500kg/h
Power:18.5kw motor
Size: 3800x2600x2800mm
Weight: 3100kg
Matched machines:
| Model | Capacity (kg/h) |
Power(kw) | Size(mm)f | Weight(KG) |
| 6YL-80BF | 100-150 | 5.5kw+0.75kw | 1600x1600x1900 | 600 |
| 6YL-100BF | 200-250 | 7.5kw+0.75kw | 1970x1875x2200 | 1200 |
| 6YL-120BF | 300-350 | 11kw+1.1kw | 2150x2200x2500 | 1750 |
| 6YL-160BF | 400-500 | 18.5kw+1.5kw | 2350x1650x1930 | 2100 |
More pictures and details:

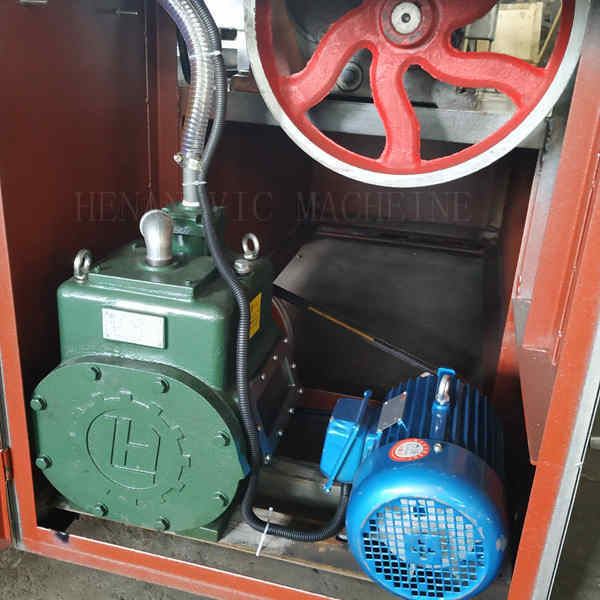

Vacuum pump amd motor for oil filtering

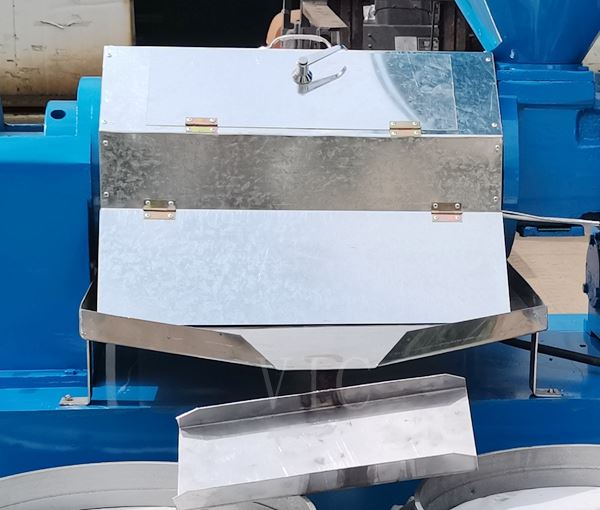

Stainless steel cover and oil plate

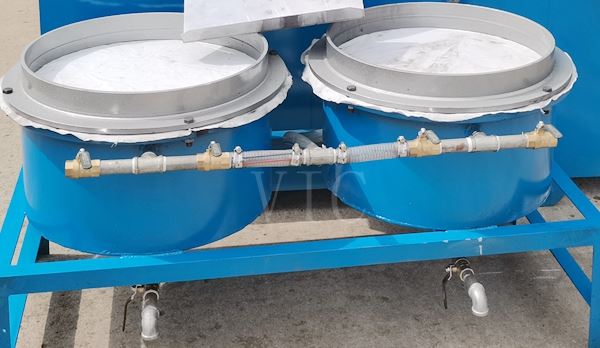

Oil filter tanks
