Main raw materials:
This machine can process kinds of oilseeds such as peanut, sesame, rapeseeds, sunflower, walnut, and so on.
Application:
1.New type: this machine are widely used for family use
2.Advantages: easy operation, high oil output rate, easy to clean and very suitable for family use
3.Final oil: DIY oil without any additive, safety oil for health.

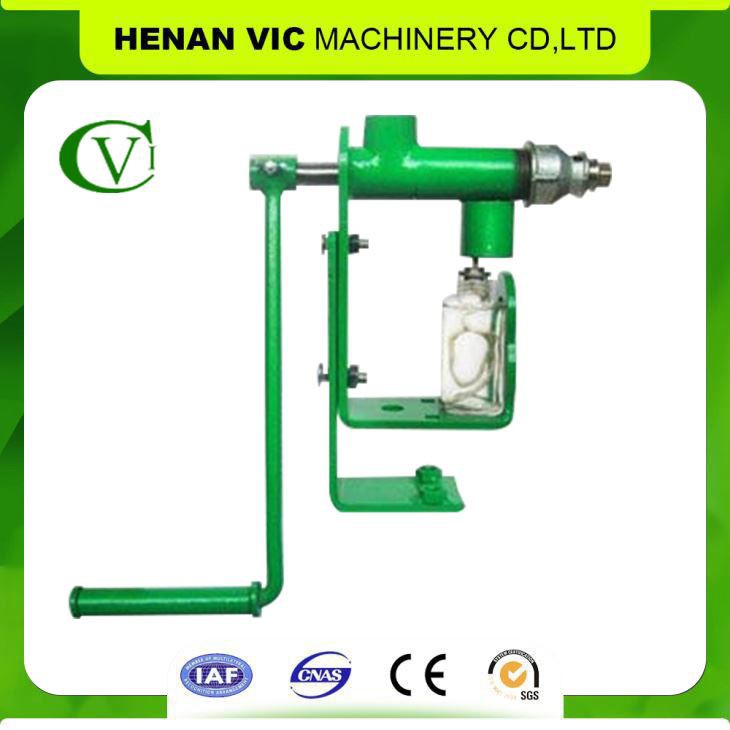

4.Main parts: this oil press machine is made of frame, pressing cage with screw shaft, handle crank, heating parts, etc, the feeding in and oil collecting can choose a plastic bottle or glass cans by users for environment protection.
Technical data:
Model: LY-1 handle oil press
Processing capacity: 2kg/h
Materials feed-in moisture: less than 10%,
Steel: pressing screw 40 Cr; pressing chamber seamless tube, frame: Q235 steel
Residue oil in cake: less than 8%
Pressing screw rpm: 50r/min
Pressing screw dia: 26mm
Machine size: 350x60x316.5mm
Package size: 325x255x95mm
N/G weight: 2.2kg/2.4kg
The oil extraction rate of different oil content materials:
Type of seed | Total oil to seed | Oil extraction | Extraction rate (%) | Output (g/h) | Output (l/h) | Input (kg/h) | Remarks |
Sunflower | 45 | 34 - 38 | 76 - 84 | 1200 | 1.33 | 3.4-3.6 | - |
Sunflower | - | 21 | - | 415 | 0.47 | - | use black oil seed |
Rapeseed/canola | 44 | 33 | 75 | 1524 | 1.69 | 4.5 | 50 rpm |
Sesame | 60 | 46 | 77 | 1738 | 1.93 | 3.8 | 50 rpm |
Oil palm kernel | 68 | 46 | 68 | 1280 | 1.42 | 2.8 | not crushed |
Shelled groundnut | 57 | 40 | 70 | 1468 | 1.65 | 3,61 | |
Pumpkin seed | 45 | 39 | 86 | 570 | 0.63 | 1.5 | low input |
Walnut kernel | 71 | 63 | 89 | 894 | 1.00 | 1.4 | grated |
More picture:
Pressing screw:
Final oil:
