Commercial Oil Expeller Machine

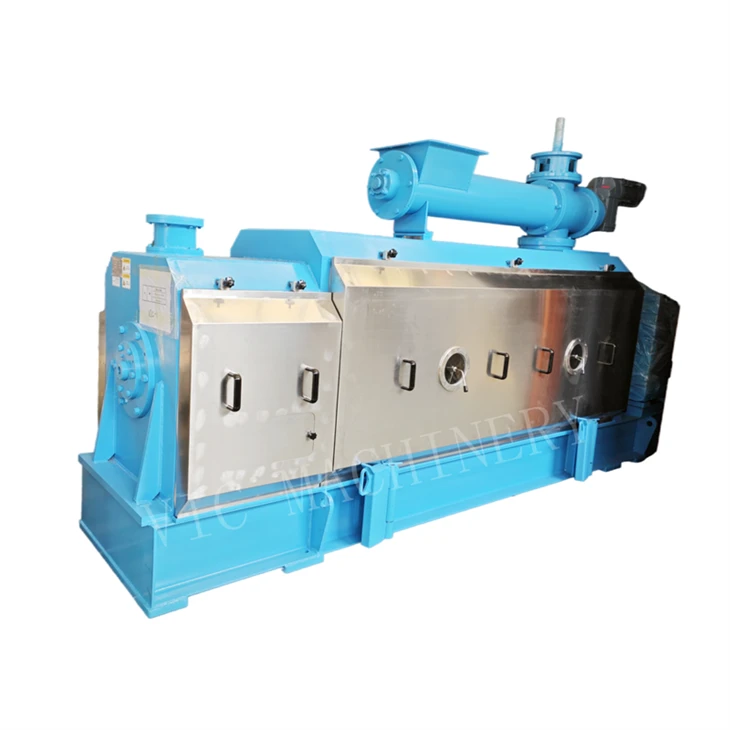

DZX276 Commercial oil expeller machine is designed for large-scale oil extraction with a processing capacity of 50-60 TPD of raw materials. Built for durability and efficiency, this heavy-duty machine is engineered to deliver consistent, high-quality oil production for industrial operations.

Crafted from high-strength steel through precision welding and integrated machining, our expeller ensures exceptional stability and long-lasting performance even under continuous working. Its robust construction minimizes vibrations and wear, guaranteeing smooth, uninterrupted operation for maximum productivity.

Ideal for processing a variety of oilseeds (such as soybean, peanut, cotton seeds, sunflower, rapeseed, tung seed, castor bean, corn germ and more), this commercial oil expeller machine combines advanced pressing technology with energy-efficient design, optimizing oil yield while reducing operational costs.

This large oil press machines with steam cooker are also widely used in big oil production lines to complete the pre-pressing of raw materials.

1. The DZX276 big commercial oil expeller machine is an upgraded product of the original type oil press. Compared with the original model, a hollow shaft water-cooling device is added to avoid cake paste. The feeding mode is changed to reverse feeding, and the gearbox is an up-and-down opening and closing box.

The gears are ground by grinding process, and equipped with a cold oil circulation system for longer service life and easier maintenance.

2. The pressed cake has good shaping effect and good color, which is conducive to leaching.

3. This equipment has a wide adaptability range, and the requirements for moisture and temperature are not too strict. It is also a high and low temperature dual-purpose machine. Even if the material temperature is pressed under low temperature conditions of 70-80 degrees, it will not affect the residual oil index of the dry cake. It can ensure low denaturation of protein in the cake.

4. The main gearbox gear is equipped with a cold oil circulation spray device to fully lubricate the gearbox bearings and gears and greatly extend their service life.

5. The main gearbox is independently researched, designed and produced according to the operating characteristics of the oil press. It has the characteristics of large gear module, high strength, torsion resistance, thrust resistance and low operating noise. The gears adopt hard tooth surface grinding technology.

6. The pressing screw and rods adopt cemented carbide technology and have a service life of not less than 6 months.

7. The outer cover plate of the oil press is made of 304 stainless steel.

8. The main shaft and the reducer are connected by a square-head coupling. This connection method does not break the shaft and effectively prevents the main shaft from fatigue fracture; the main shaft is a hollow cooling shaft and is equipped with an electric cake adjusting device.

Auger with forced feed ensures continuity and stability of feed

Heat-treated and optimized arrangement of round rings and alloy pressing screw makes fast oil production and high output

Strong reducer with cooling system for smooth transmission of greater torque

1)Wrapped in film

2)Packed into wooden cases or containers

Q: What is a commercial oil expeller machine?
A: A commercial oil expeller machine is an equipment used for extracting oil from peanut,cotton seeds,flaxseeds, sunflower seeds,rice bran,corn germ and so on. It applies mechanical force to crush the seeds and extract oil.

Q: How does a commercial oil expeller machine work?
A: This big commercial oil expeller machine involves feeding seeds into the screw oil press machine where they are crushed and pressed to extract oil. The oil is then separated from other unwanted solids and impurities.

Q: What factors should I consider when buying a big commercial oil expeller machine?
A: Tell us your capacity and raw materials character.

Q: Do I need specialized training to operate a big commercial oil expeller machine?
A: No, you don't need specialized training to operate a big commercial oil expeller machine. However, it's advisable to read the instruction manual carefully before use to ensure optimal performance and avoid accidents.
